# Learning Module {% hint style="info" %} The Learning Module is constructed using the open-source Python library [*PyCaret*](https://pycaret.gitbook.io/docs/). You can find valuable information about [*PyCaret*](https://pycaret.gitbook.io/docs/) at the following links: * [*PyCaret* Gitbook](https://pycaret.gitbook.io/docs/) * [*PyCaret* ReadTheDocs](https://pycaret.readthedocs.io/en/stable/) * [*PyCaret* GitHub](https://github.com/pycaret/pycaret) {% endhint %} ## Overview Videos {% embed url="" %} Learning Module - Scene Creation {% endembed %} {% embed url="" %} Learning Module - Understanding Pipelines and Results {% endembed %} *** ## Create a Scene To create a scene, follow these steps: 1. Click on the Learning Module Icon.

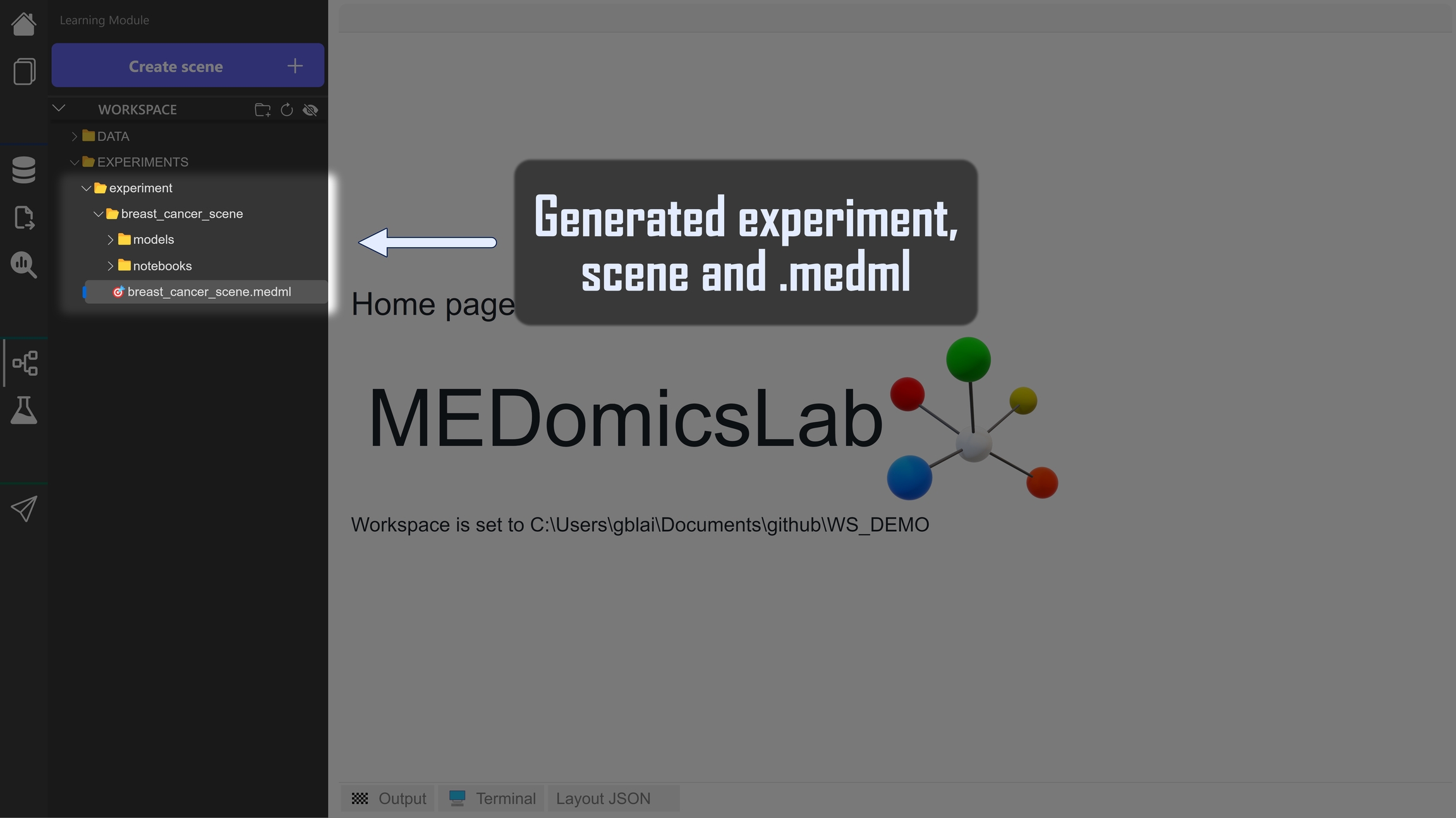

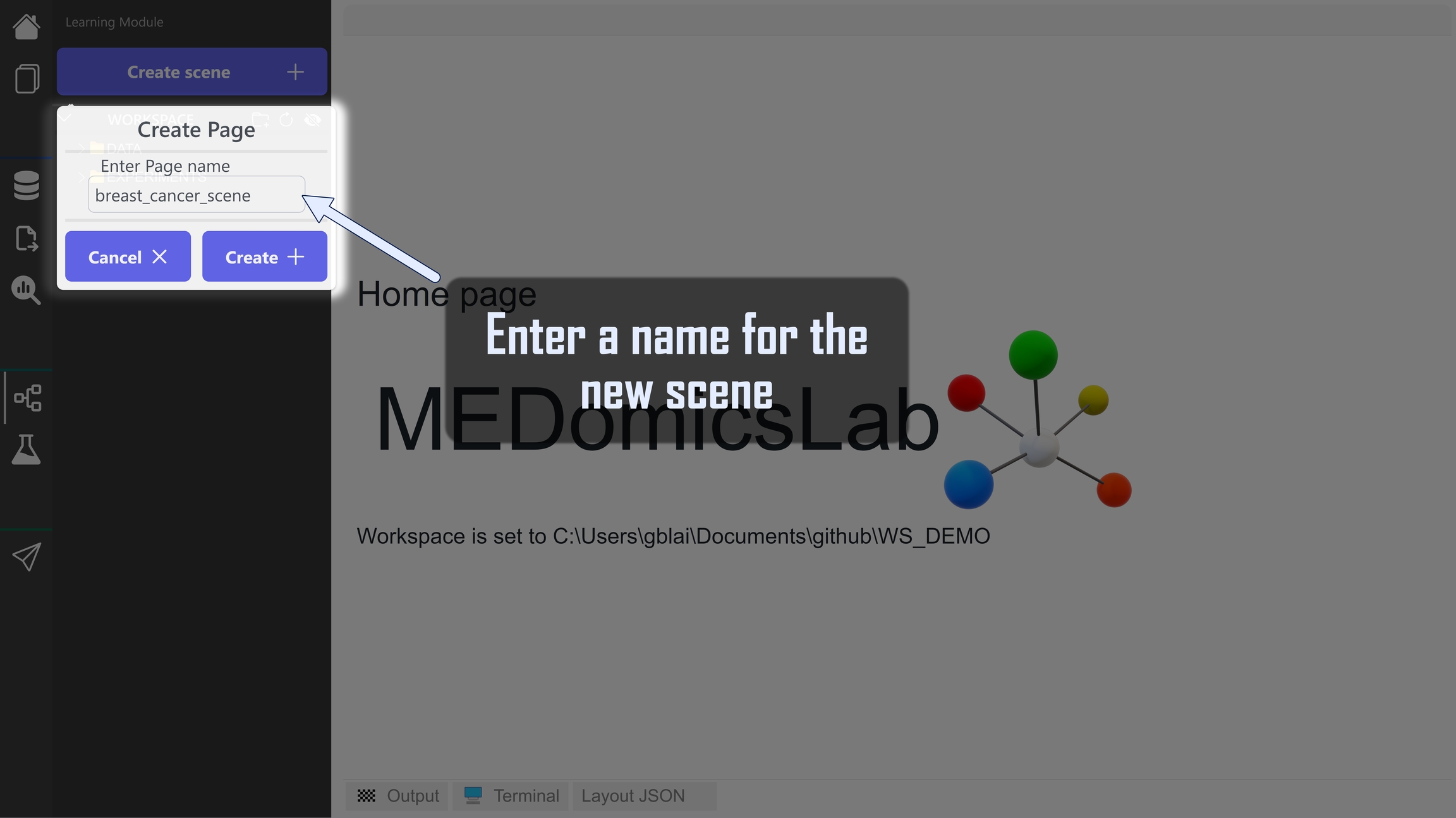

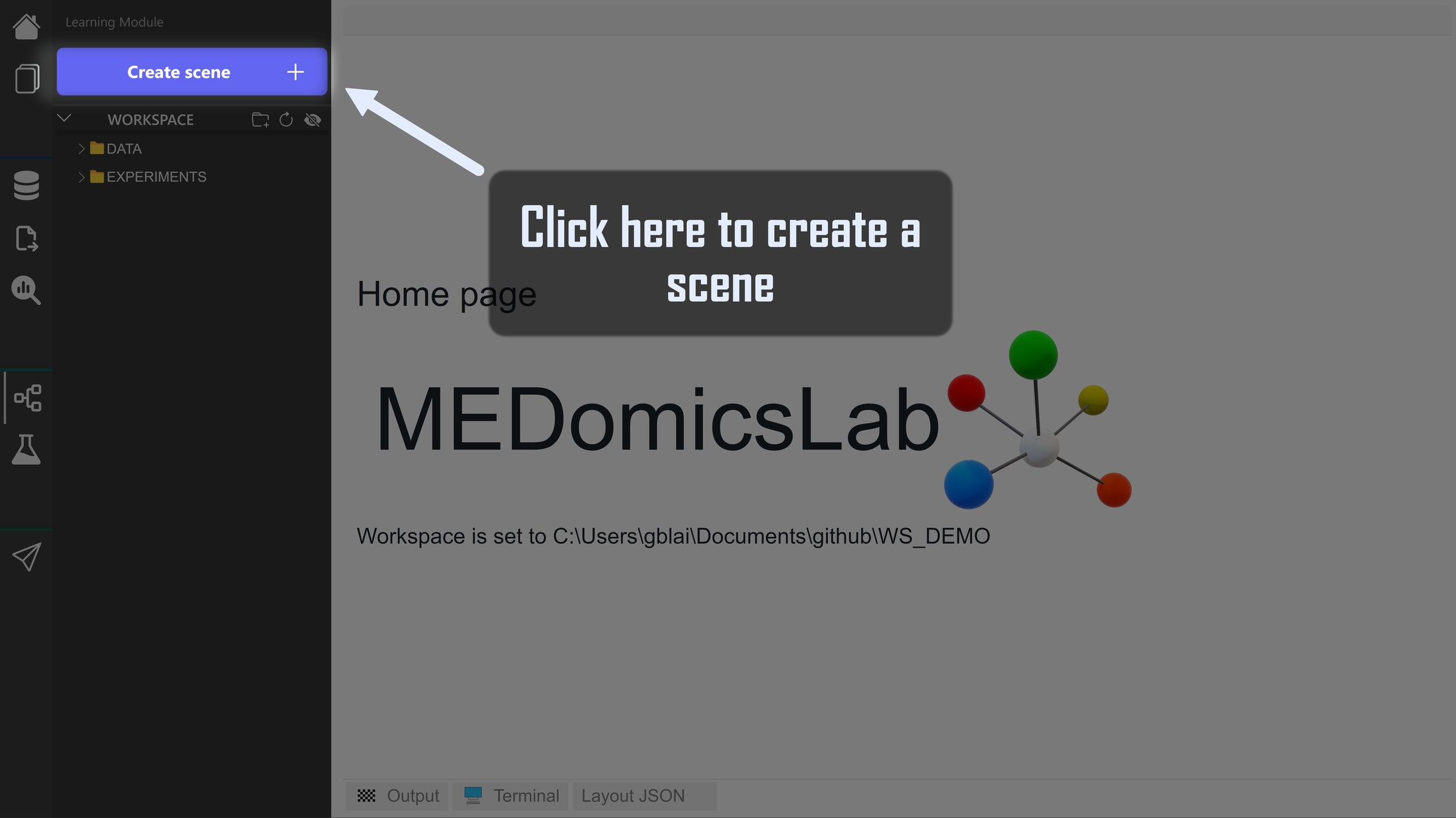

2. Click on the "Create scene" button. 3. Enter a name for the new scene. The application will generate a folder that includes: * Your scene (.*medml* file). * A folder for your scene models. * A folder for your scene notebooks.

{% hint style="info" %}

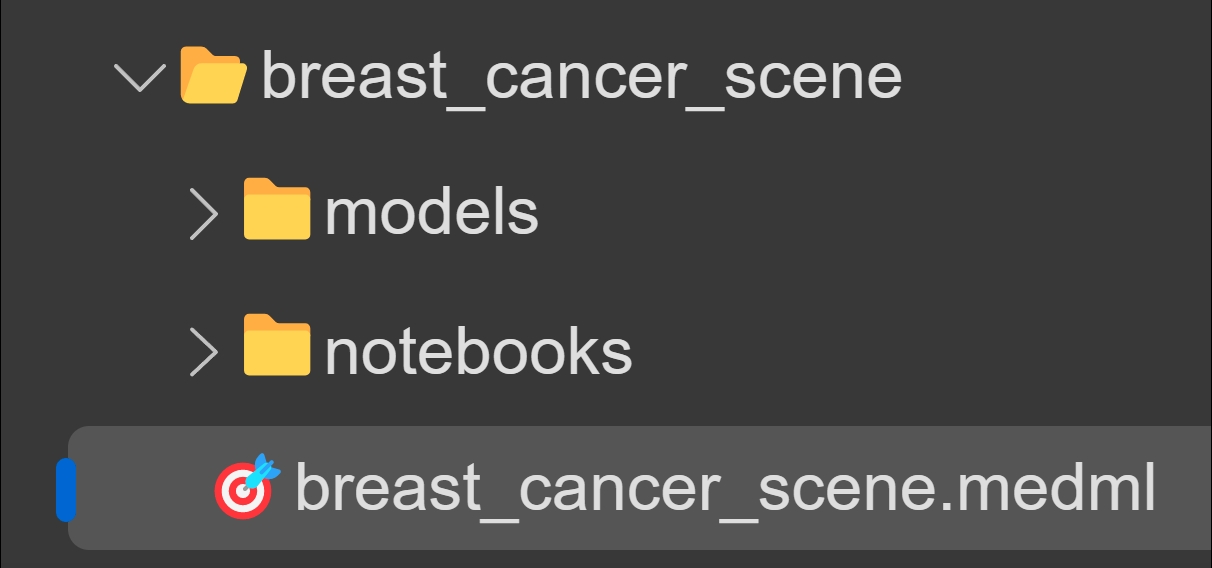

breast_cancer_scene                -> Scene folder
    ├───models                     -> Folder where models are saved
    ├───notebooks                  -> Folder where notebooks are saved
    └───breast_cancer_scene.medml  -> Scene file

{% endhint %} *** ## Module Overview {% hint style="info" %} Double click on the .*medml* file to open the scene. {% endhint %}

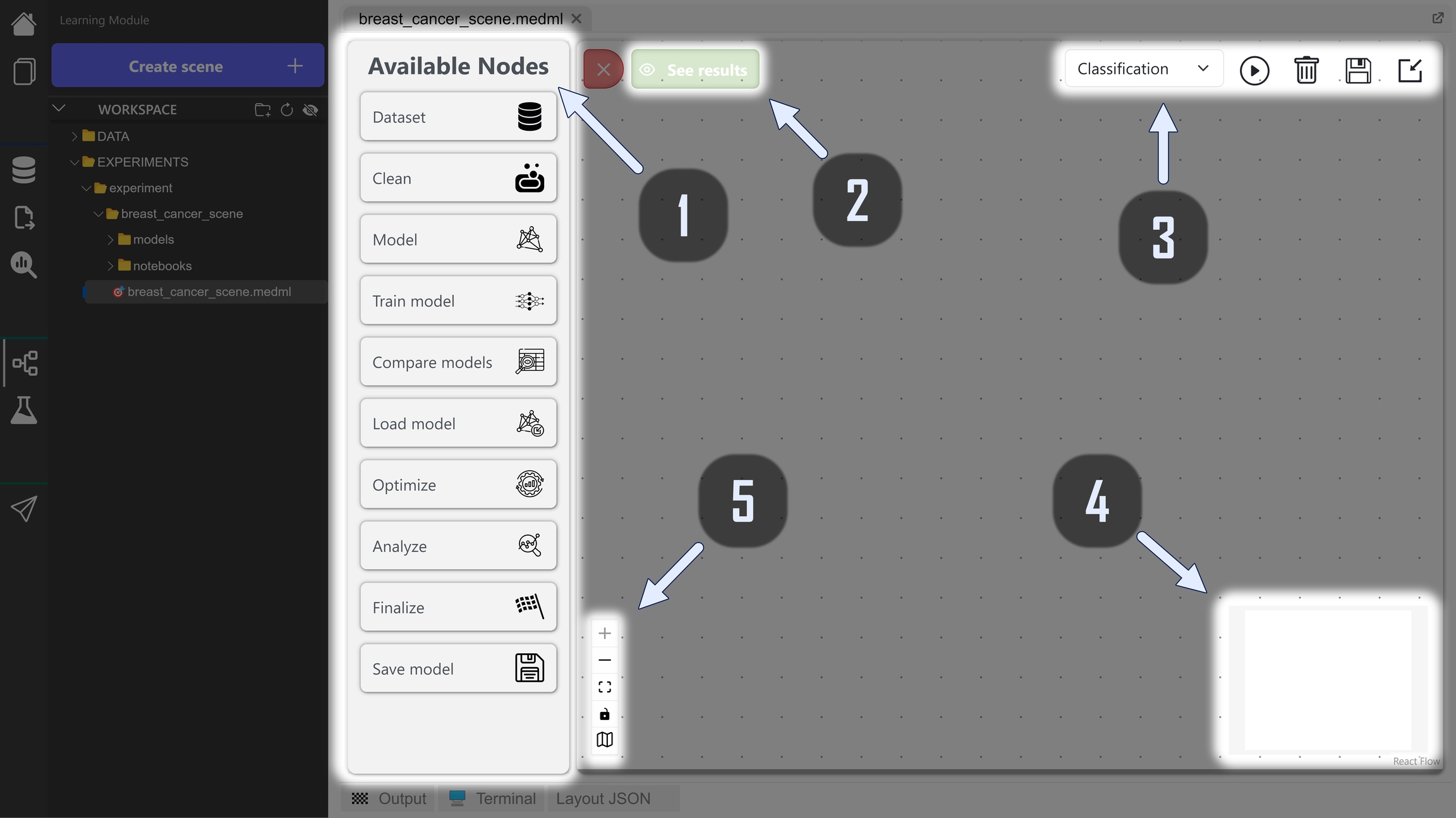

### 1. Available Nodes

{% hint style="info" %} The *Add options* button opens a panel where you can select additional options. These options are automatically generated from the online [ReadTheDocs documentation of *PyCaret*](https://pycaret.readthedocs.io/en/stable/). {% endhint %} {% hint style="info" %} The links we use to explain the *PyCaret* specific functions refer to the [Classification section of the *PyCaret* documentation](https://pycaret.readthedocs.io/en/latest/api/classification.html). However, please note that these functions are also present in other machine learning types within *PyCaret*. For instance, you can find them in the [Regression documentation of *PyCaret* as well](https://pycaret.readthedocs.io/en/latest/api/regression.html). {% endhint %}

Description	Input	Output

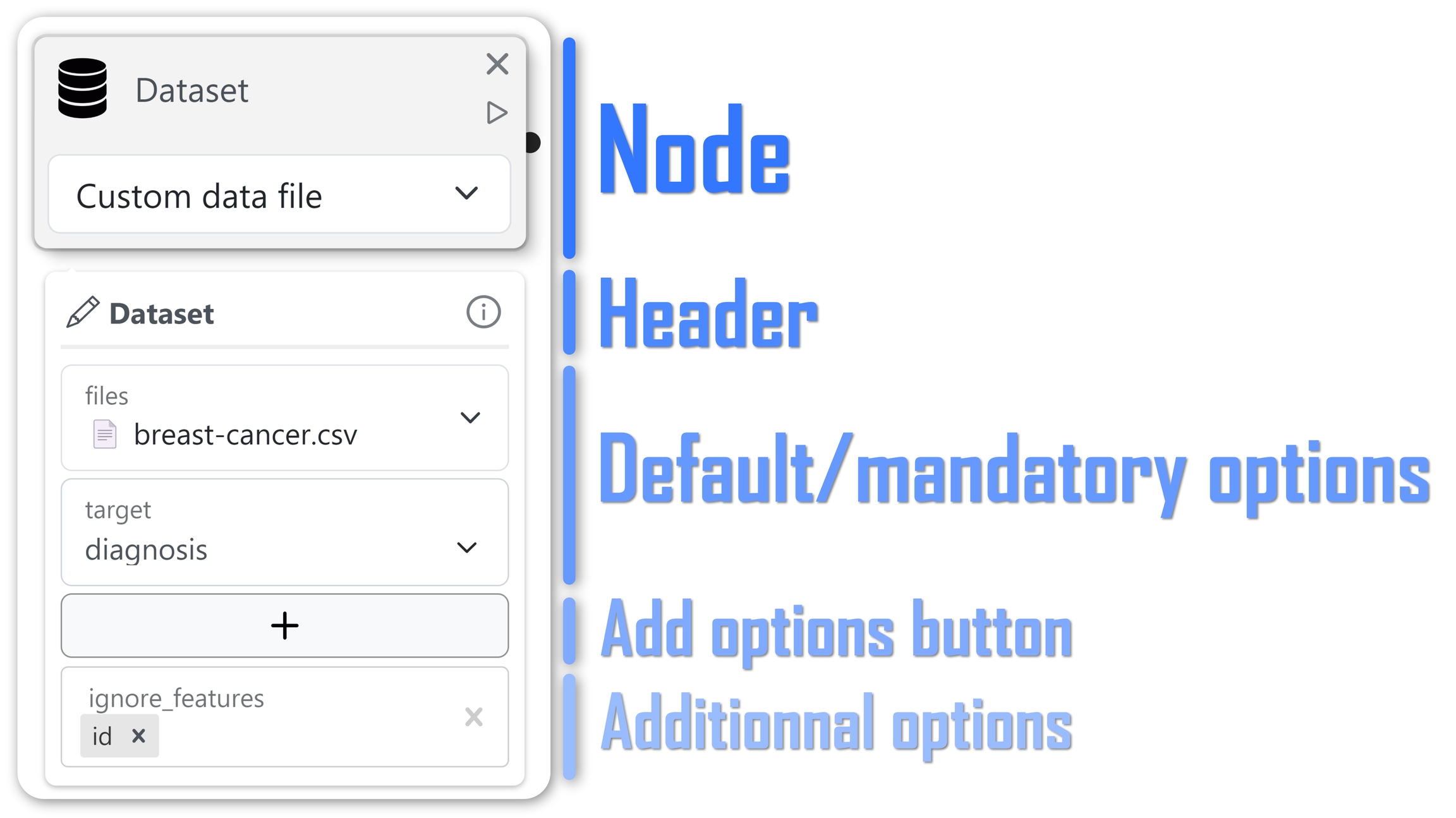

This serves as the starting point for an experiment. You have two options here: MEDomicsLab Standard: This option takes files from a learning folder, which may represent the learning set from static .csv files obtained through the MEDprofiles process. The node automatically detects files that match the format and displays them in a dropdown selector. You then need to choose which column from your selected .csv file(s) should be the target for prediction. If you select more than one file, all the selected files should have the same target column. Custom File: You can choose any .csv file from the dropdown selector displaying all your .csv files from your workspace. Then, you need to choose which column from your selected .csv file should be the target for prediction. The available options for this node correspond to the PyCaret setup function options that are not directly related to data cleaning.	-	Dataset
This node enables you to clean your dataset. The available options for this node correspond to the PyCaret setup function options that are directly related to data cleaning.	Dataset	Dataset
This node allows you to select a model and its associated parameters. It corresponds to the estimator parameter of the PyCaret create_model function. The models are directly sourced from the scikit-learn package. In fact, if you are seeking documentation about a specific model parameter, you will find it in the scikit-learn documentation.	-	Model_config
This node allows you to train a model. The available options for this node correspond to the PyCaret create_model function options (except the estimator parameter, which is defined through the Model node).	Model_config AND Dataset	Model
This node allows you to train and evaluate the performance of all estimators available in the PyCaret model library using cross-validation. The available options for this node correspond to the PyCaret compare_models function options.	Dataset	Model(s)
This node allows you to load a model from a file. It takes as input a model from the ones you saved in your scene, displayed in a dropdown selector. The available options for this node are the ones available in the PyCaret load_model function, except the model name, which is replaced by the selected file.	Dataset	Model
This node allows you to optimize a model. It is different from the other nodes as, when clicking on it, it opens a subflow containing other nodes. It gathers the optimization functions of PyCaret.**	Model	Model
This node allows you to analyze a model. It gathers the analysis and model explainability functions of PyCaret. For now, only the plot_model function is implemented in our application.	Model	-
This node allows you to finalize a model. The available options for this node correspond to the PyCaret finalize_model function options (except the estimator parameter, which is passed as input to this node).	Model	Model
This node allows you to save a model. The available options for this node correspond to the PyCaret save_model function options (except the estimator parameter, which is passed as input to this node).	Model	-

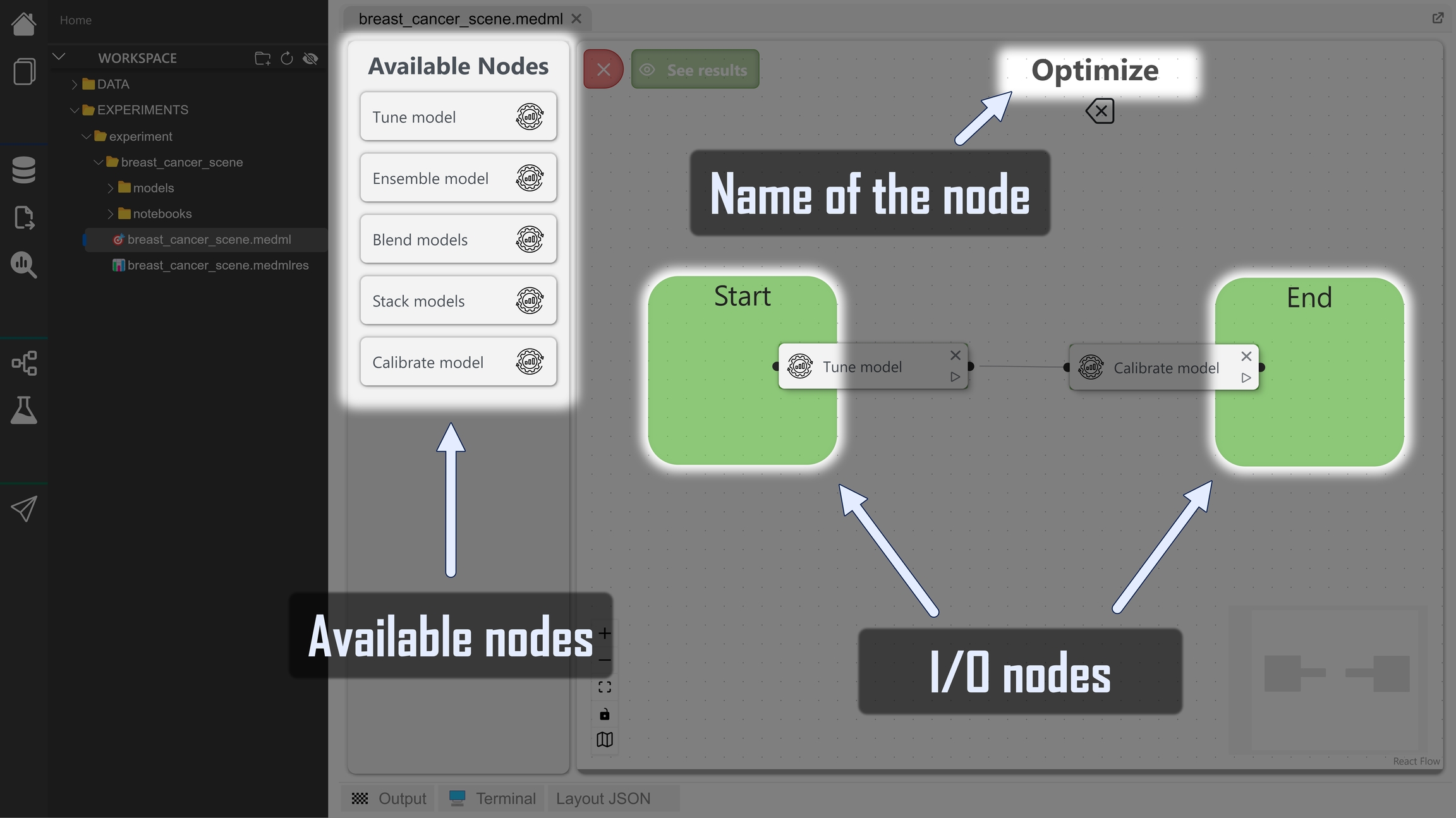

#### \*\*Optimize Node When clicking on an Optimize Node, it opens a subflow as shown below, allowing you to construct pipelines for optimization.

The available nodes differ from those displayed in the original flow. You can find useful information on how to use them on this page of the [*PyCaret* GitBook](https://pycaret.gitbook.io/docs/). For additional information about the available nodes, please refer to the [*PyCaret* ReadTheDocs](https://pycaret.readthedocs.io/en/stable/) documentation: * **Tune Model** documentation is available [here](https://pycaret.readthedocs.io/en/latest/api/classification.html#pycaret.classification.tune_model). * **Ensemble Model** documentation is available [here](https://pycaret.readthedocs.io/en/latest/api/classification.html#pycaret.classification.ensemble_model). * **Blend Models** documentation is available [here](https://pycaret.readthedocs.io/en/latest/api/classification.html#pycaret.classification.blend_models). * **Stack Models** documentation is available [here](https://pycaret.readthedocs.io/en/latest/api/classification.html#pycaret.classification.stack_models). * **Calibrate Model** documentation is available [here](https://pycaret.readthedocs.io/en/latest/api/classification.html#pycaret.classification.calibrate_model). The name of the node is where you can edit the name. The green blocks (I/O nodes) represent the input and output of the Optimize node. They are movable, and to connect them, simply intersect them with your nodes. ### 2. Results Button This button is used to view the results of the experiment. It is disabled until you run an experiment. Once you have run an experiment, a .*medmlres* file is created in your scene folder, containing the generated results from the experiment. In fact, if you quit the app, your generated results will still be available the next time you open the app. Once you click on the *See results* button, you activate the *Result Mode*. In this mode, you cannot manipulate the scene to build pipelines. The *Result Mode* only allows you to select the pipelines you want to observe the results from. To exit the *Result Mode*, simply press the *See results* button again, which becomes the *Results mode on* button while the Result Mode is activated. {% hint style="info" %} Refer to the [Results Panel](#id-3.-results-panel) section for more information about the results. {% endhint %} ### 3. Utils Menu This menu contains different functionalities that can be used to help you build your scene. | Element | Description | | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------- | | Machine Learning type dropdown

| This dropdown allows you to select the type of machine learning you want for your experiment. When changing the type, all settings are reset. | |

Play

| This button allows you to run the experiment. You can find additional information about running the experiment [here](#id-2.-run-the-experiment). | |

Garbage bin

| This button allows you to delete all nodes in the scene. | |

Save

| This button allows you to save the scene. | |

Load

| This button allows you to load a scene from a file. | ### 4. Minimap This minimap allows you to navigate the scene and visualize the nodes present in it. ### 5. Flow Utils This menu contains various functionalities that interact with the flow section. | Element | Description | | ------------------------------------------------------------------------------------------------------------------------------------------------------------------ | ---------------------------------------------------------------------------------------------- | |

Plus Button

| This button allows you to zoom in the flow section. | |

Minus Button

| This button allows you to zoom out the flow section. | |

Square Button

| This button allows you to fit the flow section in the view. | |

Lock Button

| This button allows you to lock the flow section. When locked, you can't move the flow section. | |

Map Button

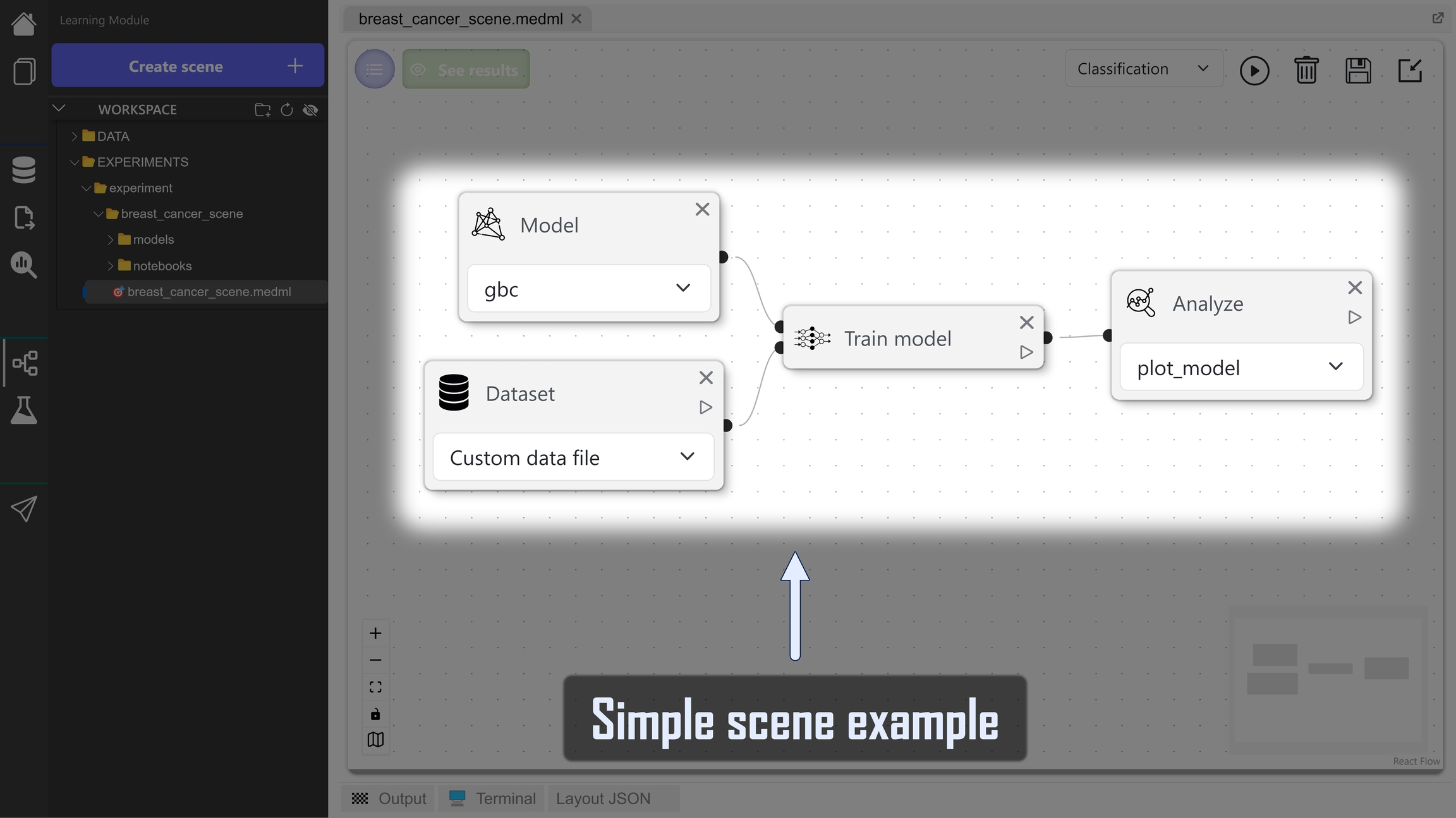

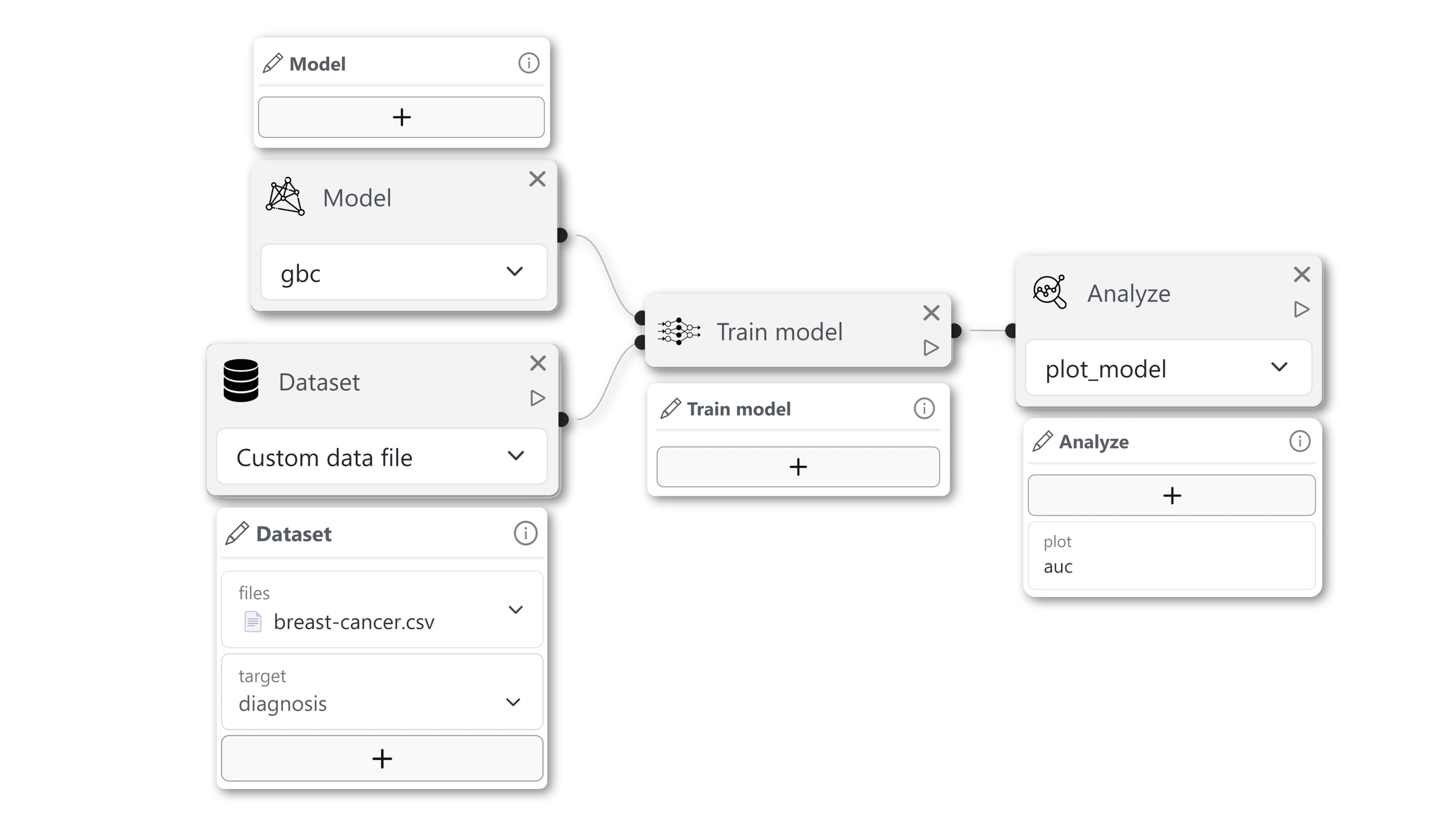

| This button allows you to show/hide the minimap. | *** ## Example ### 1. Creation of your Pipeline Drag and drop nodes from the menu to create your own [pipeline(s)](#multiple-pipelines). Here is an example of a simple classification pipeline that takes a dataset, trains a Gradient Boosting Classifier model, and then plots the resulting AUC (Area Under the Curve) plot.

### 2. Run the Experiment You can execute the experiment by clicking on the *Run* button.

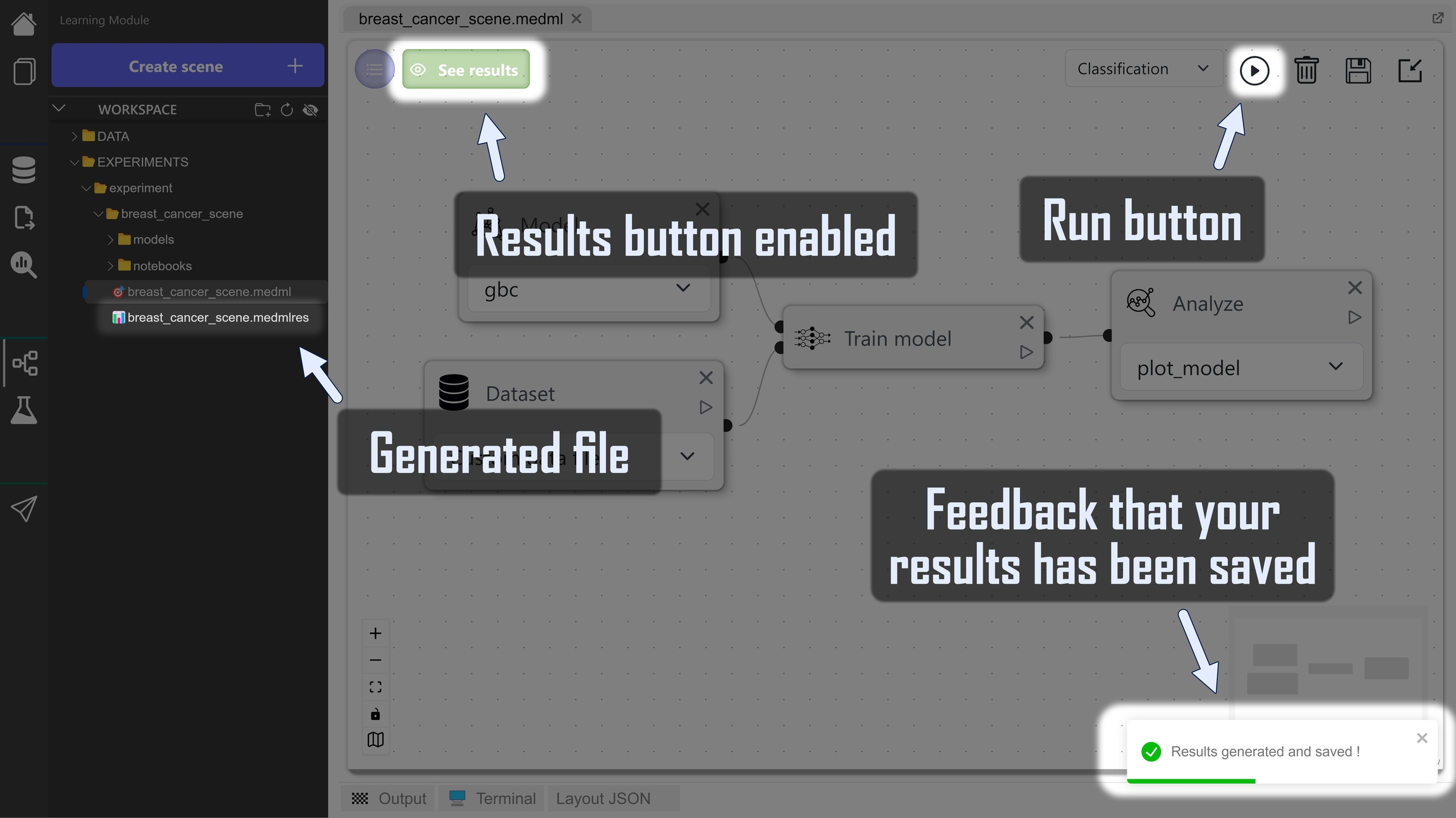

A progress bar will appear, and upon completion of the experiment: * A Toast message will confirm that the results have been saved. * A new file (.*medmlres*) will be generated in your scene folder, containing results related to your scene (you can't open the .*medmlres* file). * The *See results* button will be enabled. ### 3. Results Panel When you click the *See Results* button, you will activate the *Result Mode*.

As you can see, a panel opens at the bottom with various collapsible items:

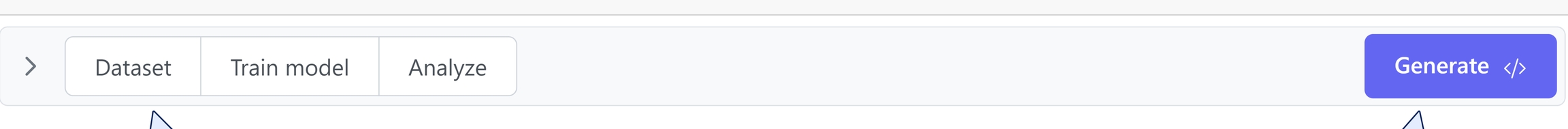

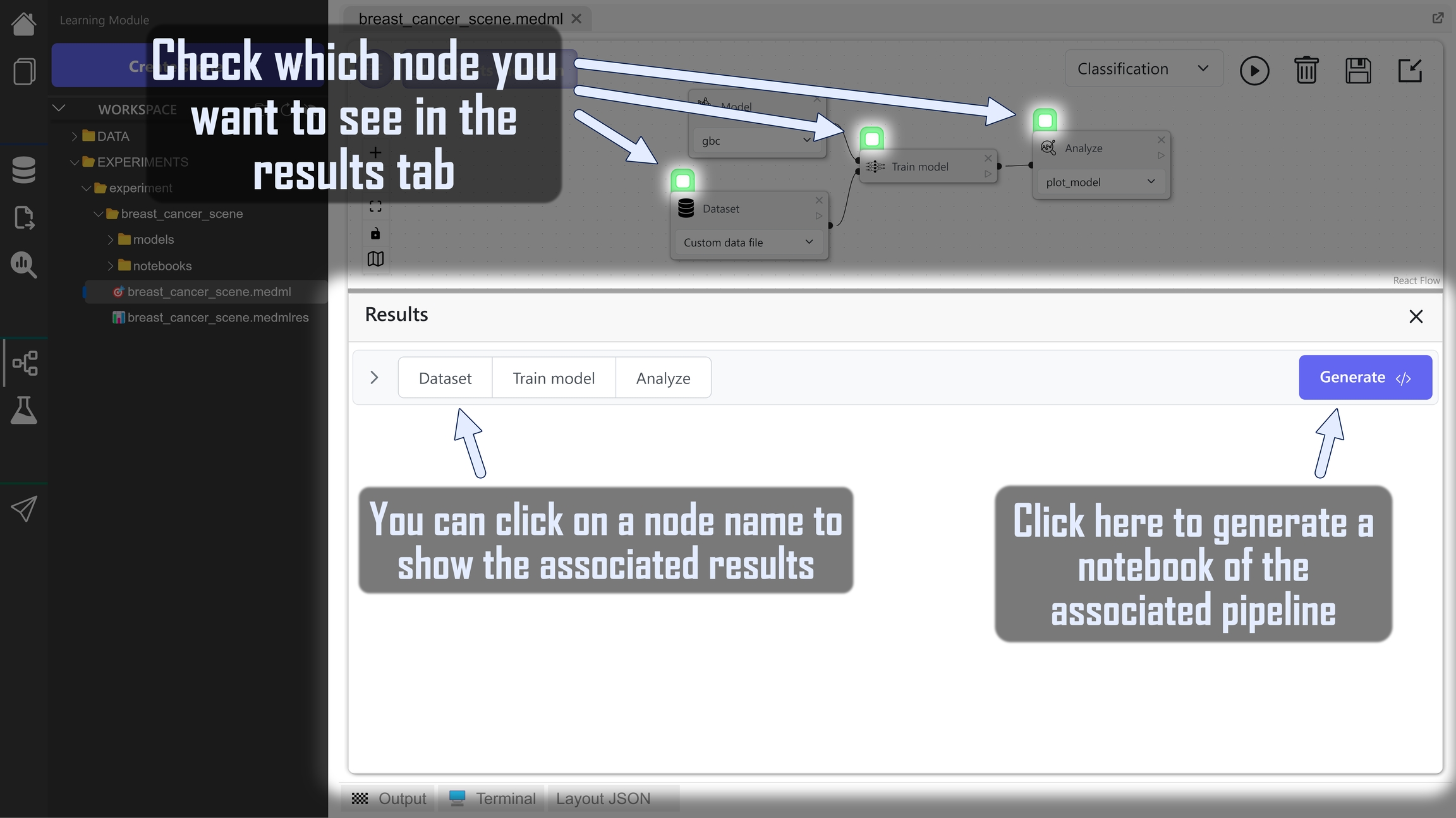

They are called the **Pipeline's Results Viewer**. On the **left**, you can see all the nodes in the pipeline. You can click on them to view associated results. On the **right**, there is a button that generates a notebook for the associated pipeline. {% hint style="info" %} You can also filter which pipeline(s) you want to see in the results panel by checking the nodes in the flow section. Refer to the [Pipeline Selection box section](#id-2.-pipelines-selection-box) for more information. {% endhint %} #### 3.1 [Notebook ](https://docs.jupyter.org/en/latest/running.html)Generation The generated file is saved in the notebook folder of the associated scene. You can open it directly from the application by right-clicking and selecting "Open in..." and then choosing, for example, *VSCode*. {% hint style="warning" %} You need to run an experiment to access this functionality. {% endhint %} {% hint style="warning" %} The default code editor is not implemented yet, but it's coming soon! 😉 {% endhint %}

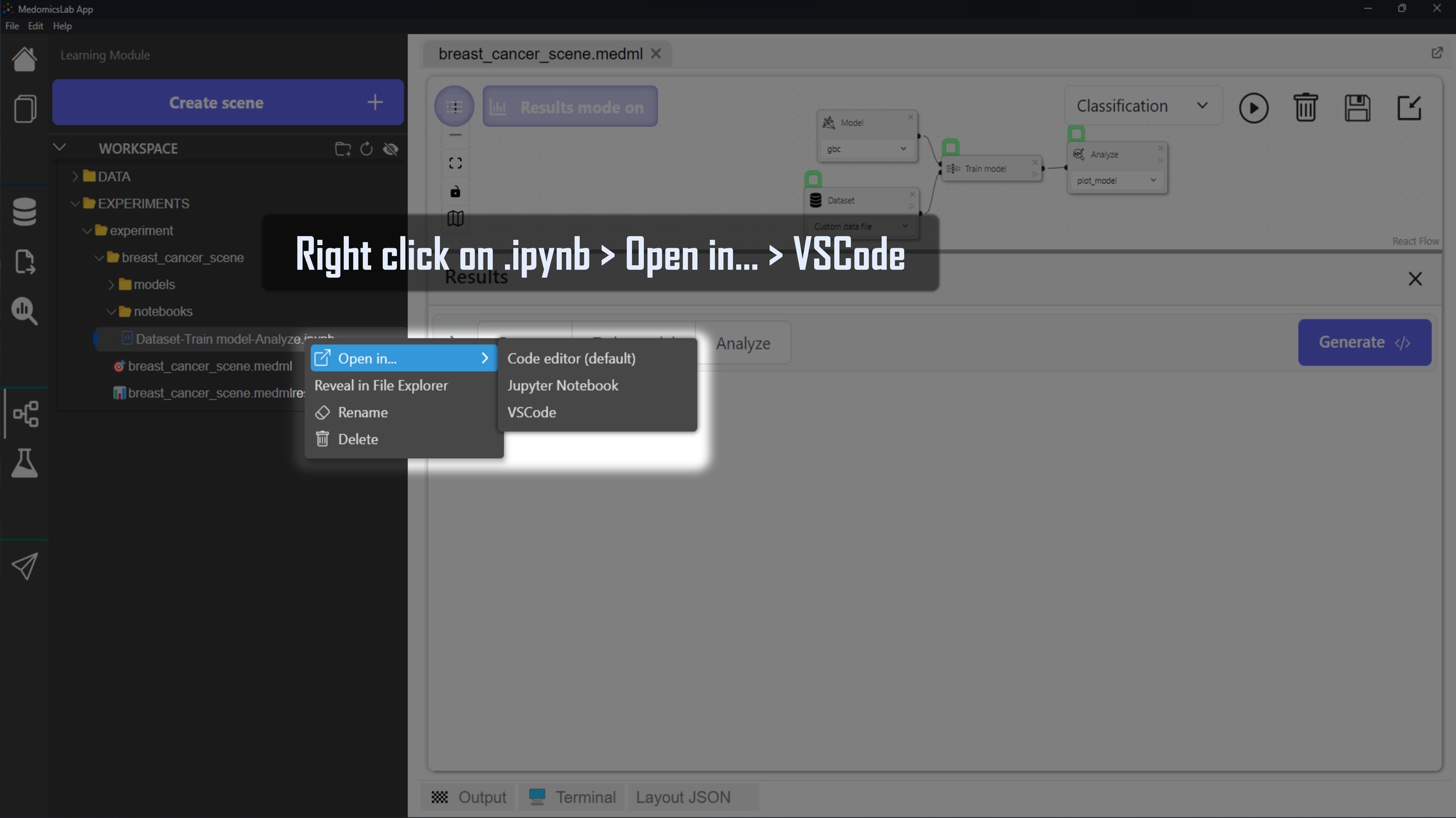

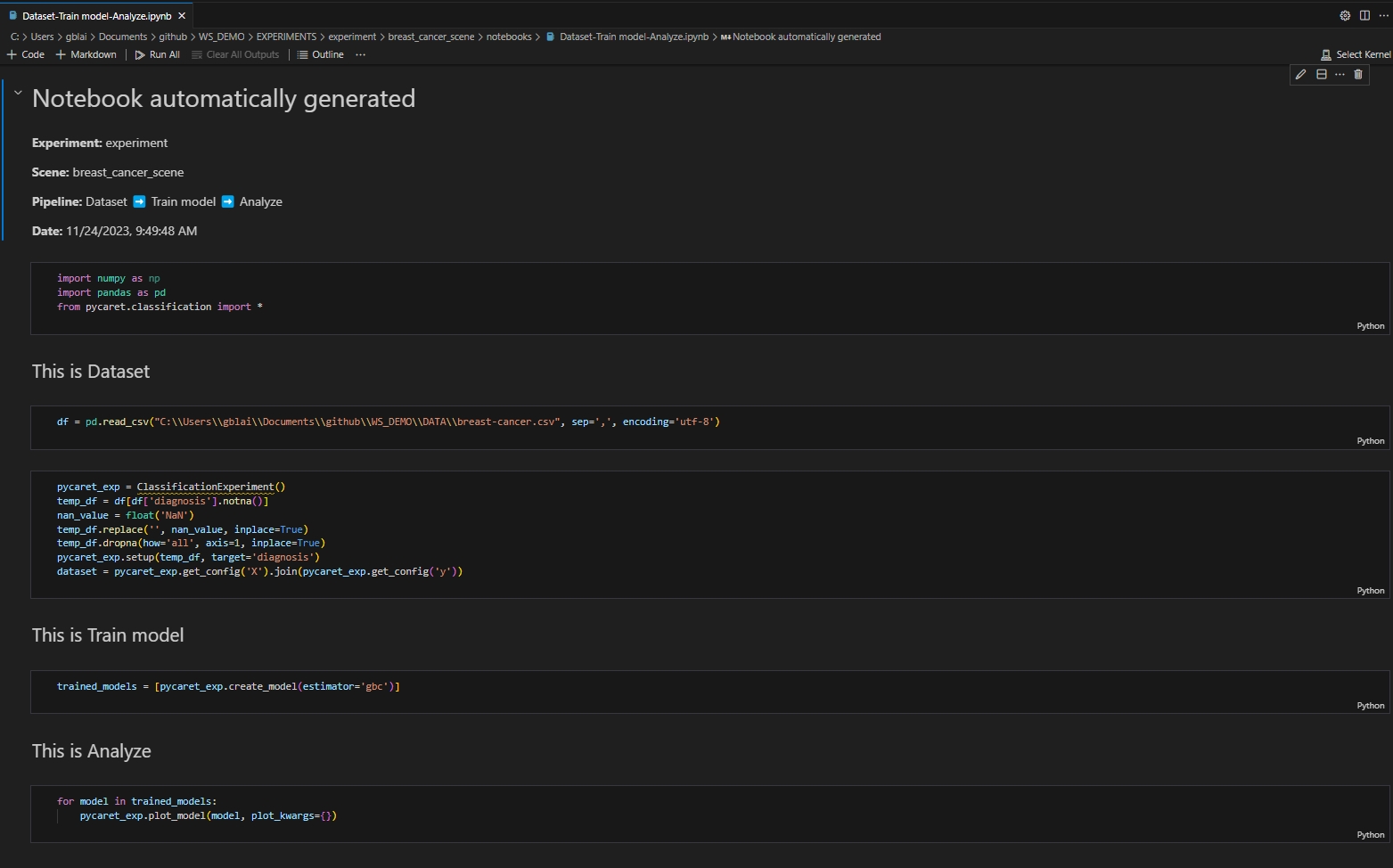

Automatically Generated Notebook opened in *VSCode*

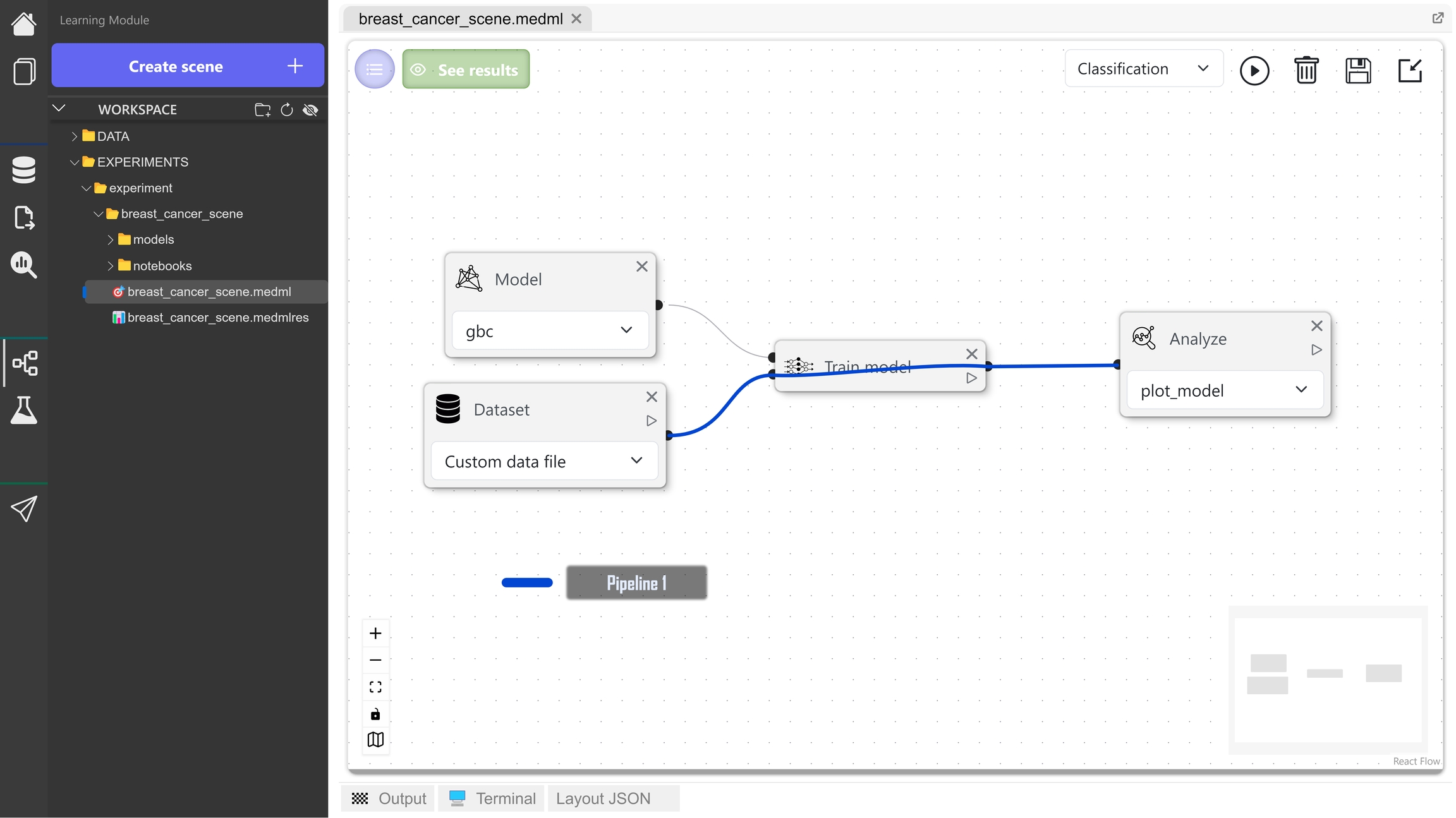

*** ## Multiple Pipelines When constructing your scene, you can connect multiple nodes to each other, creating multiple pipelines! ### 1. Single VS Multiple Pipelines: {% tabs %} {% tab title="Single pipeline" %}

{% endtab %} {% tab title="Multiple pipelines" %}

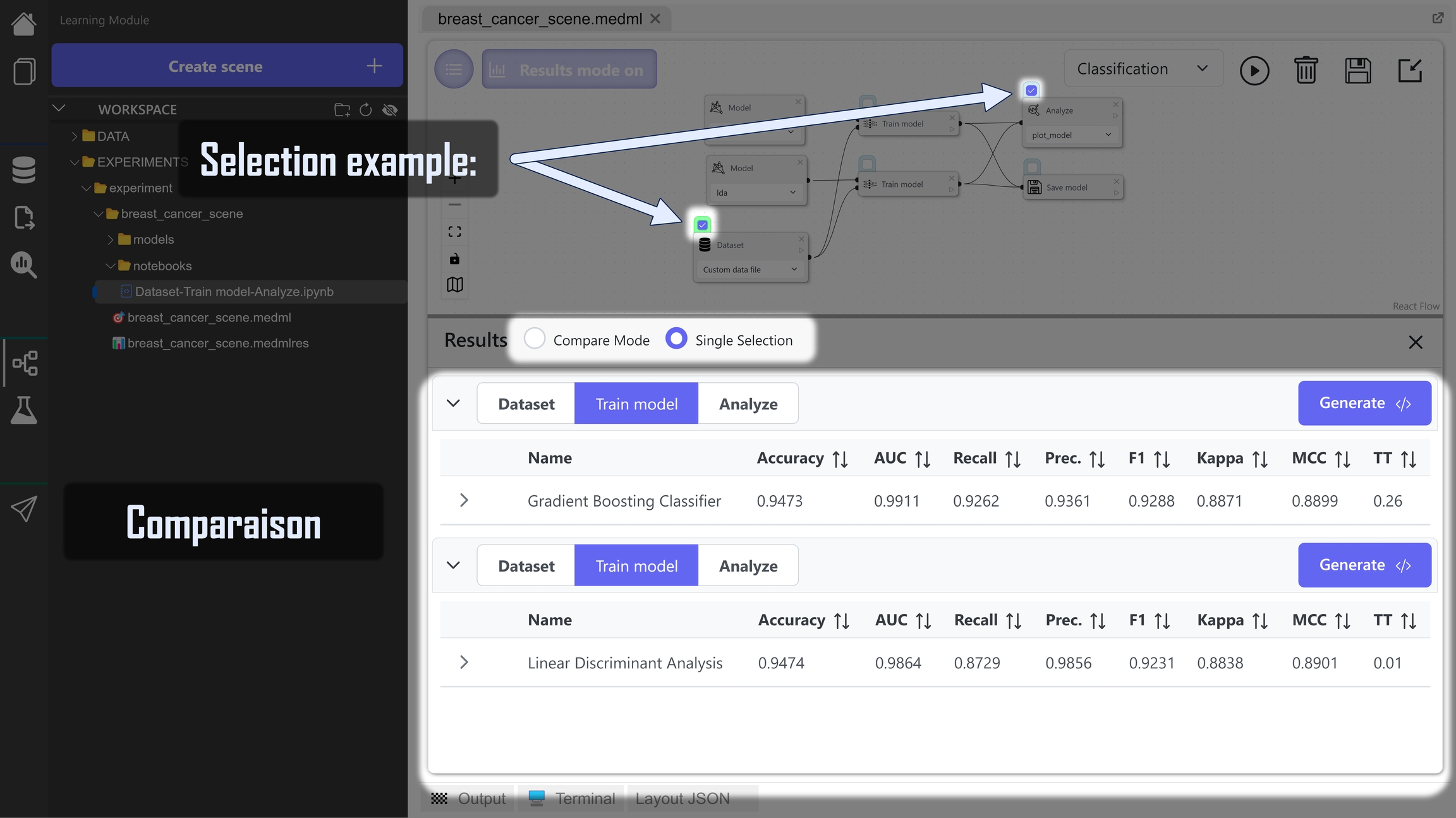

{% endtab %} {% endtabs %} ### 2. Pipelines Selection box Each runnable node has a checkbox on top of the node in results mode. Checked nodes, especially those in green, will be displayed in the results panel.

{% hint style="info" %} The **independent selection box** (green ones) indicates that every pipeline goes through this node. Therefore, it will always be shown in the associated results. {% endhint %}

***

What PyCaret does ?

PyCaret primarily implements functions from the [*scikit-learn* library](https://scikit-learn.org/stable/). ## 1. Initialization At the beginning of a Machine Learning pipeline, you initialize your data using [*PyCaret*'s setup function](https://pycaret.readthedocs.io/en/stable/api/classification.html#pycaret.classification.setup), corresponding to the Dataset and Clean nodes in our *Learning Module*. The setup function requires a dataset and the name of the target column. *PyCaret* then initializes elements for the pipeline.
![](https://content.gitbook.com/content/7cVTUTkb3KodRR4EGOZH/blobs/yLPdCDvWFabtx9M7Lz6n/pycaret_workflow.png) ### 1.1. Test Data *PyCaret* divides your dataset into two parts: the training set and the test set (controlled by the `test_data` parameter in the [*PyCaret* setup function](https://pycaret.readthedocs.io/en/stable/api/classification.html#pycaret.classification.setup)). The training data is employed to train and optimize your machine learning model, while the test data is reserved for evaluating the created model. The split is conducted using the [*scikit-learn* train\_test\_split function](https://scikit-learn.org/stable/modules/generated/sklearn.model_selection.train_test_split.html) (useful explanations about this function can be found [here](https://github.com/mGalarnyk/Python_Tutorials/blob/master/Sklearn/Train_Test_Split/TrainTestSplitScikitLearn.ipynb)). ![](https://content.gitbook.com/content/7cVTUTkb3KodRR4EGOZH/blobs/9xlV7UVxcavNghjfn9je/spaces_kkOWBZQGwLyBFteUhl1l_uploads_yJt58khhA0hG9CaObJk1_image.webp) \*In the figure, "Full Dataset" refers to our Learning Dataset. The random sampling step is executed with the aid of a random seed, and each split is linked to a specific seed. By default, *PyCaret* randomly assigns a seed at the start of each pipeline execution. To ensure the replication of the same experiment with a consistent split, you can set this parameter in *PyCaret* (using the `session_id` parameter in the Dataset node), as demonstrated in our experiments in the instructional video. This ensures that your test and train data will remain consistent across all executions. ![](https://content.gitbook.com/content/7cVTUTkb3KodRR4EGOZH/blobs/ArZOcVlV65lqLw4ZrIYR/spaces_kkOWBZQGwLyBFteUhl1l_uploads_7bOPzY5zTlFtL52YewGP_image.webp) Here, you also have the option to define the test data yourself and provide it to *PyCaret*. However, this capability is not currently available in our application when using the MEDomicsLab Standard format. ### 1.2. Folds Then *PyCaret* will define folds on the train data to use for the Cross-Validation part (which will be executed using the Train or Compare Models box). The definition of the folds will also be done using a random seed, which you can define through the `session_id` parameter of *PyCaret*. By default, *PyCaret* uses the [*StratifiedKFold* method from *sickit-learn*](https://scikit-learn.org/stable/modules/generated/sklearn.model_selection.StratifiedKFold.html) to define the folds. The stratified method ensures that each class from the target is represented equally across each fold. ![](https://content.gitbook.com/content/7cVTUTkb3KodRR4EGOZH/blobs/wwGWJu4ipxiUPUgsivlo/stratified_cv.png) ## 2. Training There are two functions related to training in *PyCaret*: [*compare\_models*](https://pycaret.readthedocs.io/en/stable/api/classification.html#pycaret.classification.compare_models) (corresponding to our Compare Models box) and [*create\_model*](https://pycaret.readthedocs.io/en/stable/api/classification.html#pycaret.classification.create_model) (corresponding to our Train node). ### 2.1. Compare Models The [*compare\_models* ](https://pycaret.readthedocs.io/en/stable/api/classification.html#pycaret.classification.compare_models)function is used to train all the available models from *PyCaret* on the initialized data from the setup function of *PyCaret* (our Dataset and Clean nodes). The resulting table displayed shows you the mean of the Cross-Validation results of all the folds for each model. For example, if we have five folds, for each model, we train the model five times, using a different fold as validation data at each iteration. Then, we apply the trained model to the validation fold and keep the resulting metrics to calculate the mean with the validation results of the four other iterations (purple data from the split in the image shown below). ![](https://content.gitbook.com/content/7cVTUTkb3KodRR4EGOZH/blobs/iqjFK0svOcsQgExnGWmO/pycaret_cv.png) The output of the [*compare\_model* ](https://pycaret.readthedocs.io/en/stable/api/classification.html#pycaret.classification.compare_models)function is the best model found using a specified metric (Accuracy by default, AUC as we specified in our instruction video). If we set the `n_select` parameter (as shown in our instruction video), we return the specified number of models from the top of the list. ### 2.2. Create Model The [*create\_model* ](https://pycaret.readthedocs.io/en/stable/api/classification.html#pycaret.classification.create_model)function takes initialized data as an entry and a model (that you can define through our Model node). It works exactly the same way as the [*compare\_models* ](https://pycaret.readthedocs.io/en/stable/api/classification.html#pycaret.classification.compare_models)function, except that we only test one model, and the results table shows the Cross-Validation results of each fold. ## 3. Analyzing The analyses made using our Analyze node are showing the metrics resulting from our trained models on the test data defined at the initialization of the experiment. ## 4. Finalize The *finalize* function in *PyCaret* (represented by the Finalize node in our app) trains the model one last time on the entire dataset, which includes both the training data and the test data, without changing its parameters.

{% hint style="warning" %} ***PyCaret***** ROC (Receiver Operating Characteristic**)**/AUC (Area Under the Curve) plots** The AUC plots generated by the [*PyCaret* ](https://pycaret.gitbook.io/docs)library are derived from the [*YellowBrick* Python package](https://www.scikit-yb.org/en/latest/api/classifier/rocauc.html), which extends the [*scikit-learn*](https://scikit-learn.org/stable/) API. By default, the plot displays multiple curves: * The ROC curve per class for each class computed using the one-vs-rest method (meaning that the considered class is treated as the positive class and all other classes as the negative class). * The micro-average curve, which is calculated by summing up all true positives and false positives across all classes. * The macro-average curve, which takes the average of curves across all classes. We acknowledge that these curves can be a bit confusing, especially with binary classification. While using the[ *YellowBrick* package](https://www.scikit-yb.org/en/latest/api/classifier/rocauc.html) directly, we can set parameters to display only the classic ROC curve. However, we haven't found a way to set these parameters through our application with [*PyCaret* ](https://pycaret.gitbook.io/docs)yet. We are currently working on fixing this issue. {% endhint %}
